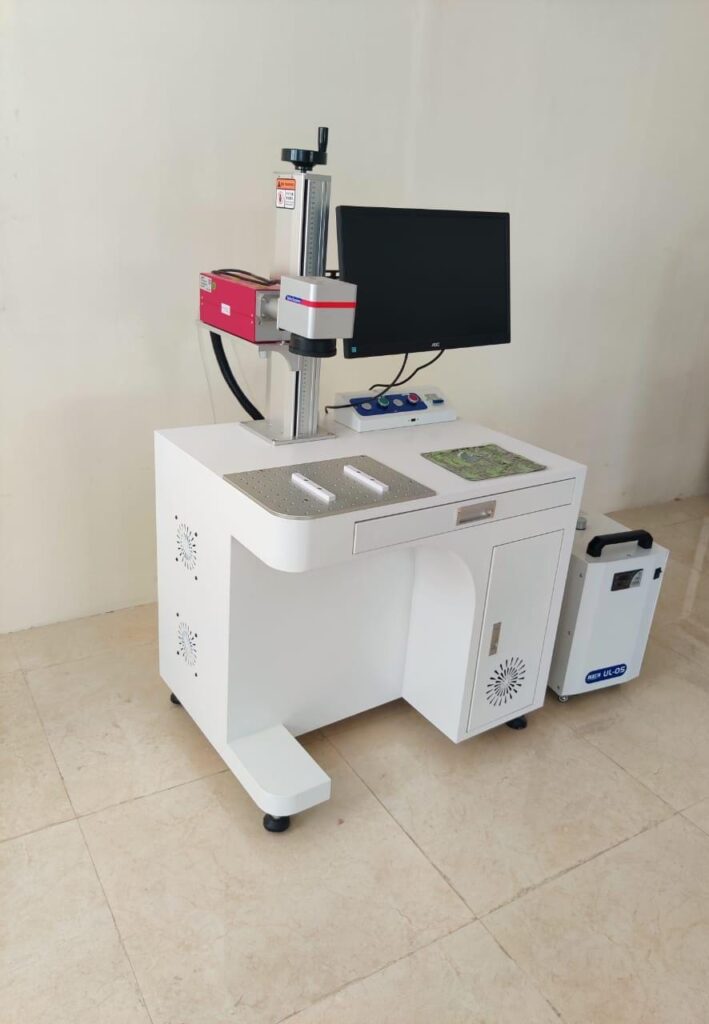

Standard UV Laser Marking Machine
Our Standard UV Laser Marking Machine is built for high-precision, high-speed, and permanent marking on delicate, heat-sensitive materials. Designed for applications where thermal stress must be avoided, this machine is ideal for plastics, glass, PCBs, and medical-grade materials — ensuring sharp, non-destructive markings with unmatched clarity.
Utilizing a 355 nm ultraviolet laser, this system delivers ultra-fine results with minimal heat generation, powered by stable and long-life UV laser sources.
Technical Specifications
| Parameter | Value |
|---|---|
| Available Laser Power | 3W / 5W / 10W |
| Wavelength | 355 nm (UV) |
| Marking Speed | Up to 7000 mm/s |
| Marking Field | 110×110 mm (default), optional up to 300×300 mm |
| Minimum Line Width | 0.02 mm |
| Minimum Character Height | 0.1 mm |
| Repeat Accuracy | ±0.01 mm |
| Cooling Method | Air or water-cooled (depending on power) |
| Software | EZCAD or compatible software |
| Voltage Input | AC 220V, 50/60 Hz |
Core Features & Highlights
UV wavelength (355 nm) for cold, low-heat marking
Excellent contrast and resolution on plastics and glass
Minimal material deformation or burning
Available in 3W / 5W / 10W laser powers
Marking speed up to 7000 mm/s
Micro-text clarity as small as 0.02 mm
Air or water-cooled options based on power level
Compact design ideal for electronics and medical manufacturing
Optional Accessories
Motorized Z-axis for focus control
Precision rotary axis for cylindrical parts
Protective enclosure with UV-blocking window
Exhaust system for fume management
Automated XY table (for batch micro-component marking)
Why Choose This Model?
Built for fragile or thermally sensitive materials
Ultra-fine detailing with high contrast
Clean marking with no burning or melting
Perfect for electronics, semiconductors, medical tools
Plug-and-play design for workstations or cleanrooms
Interested in This Machine?
Let us know your material, marking size, and volume — we’ll help you determine the ideal UV laser configuration.
