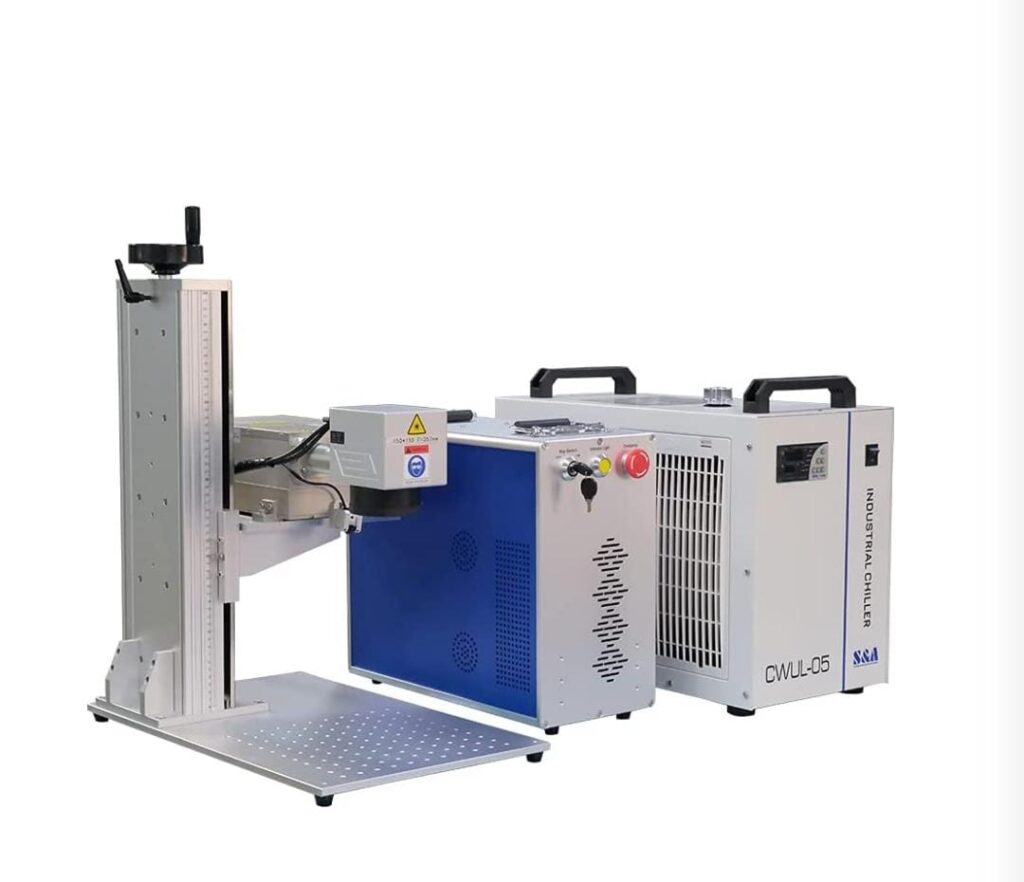

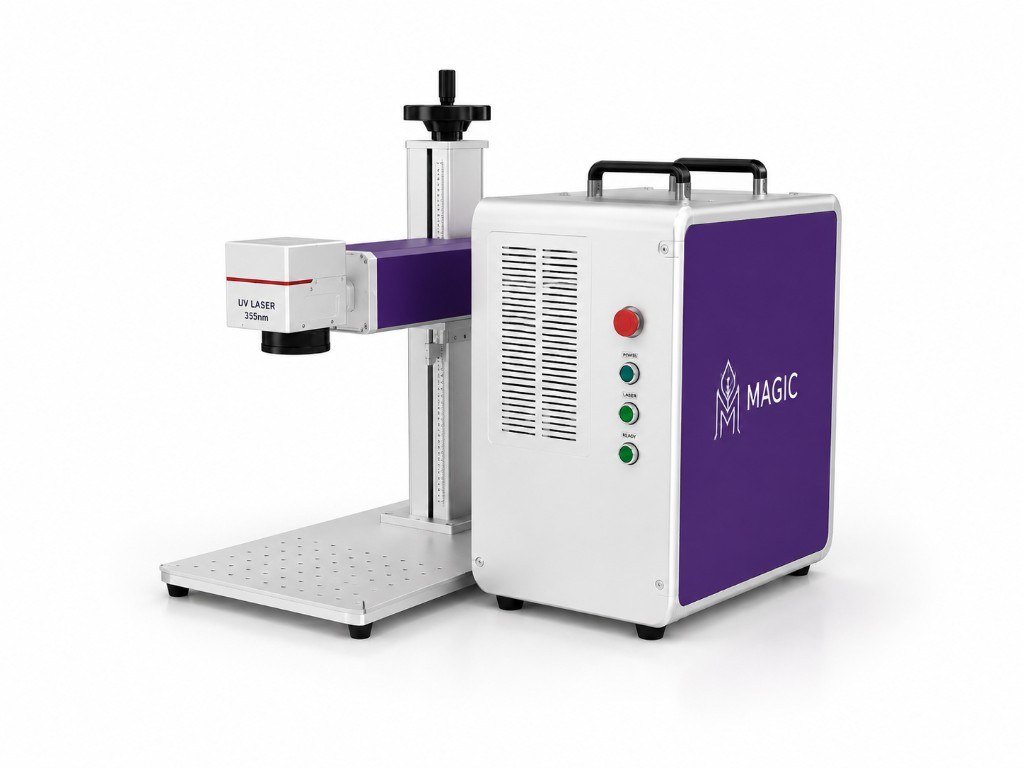

Portable UV Laser Marking Machine
Our Portable UV Laser Marking Machine is designed for high-precision, high-speed, and permanent marking on small components or objects that require flexibility and mobility. Built with a compact and lightweight structure, it offers the same micro-level accuracy as the standard model — but with easier movement between workstations or production lines.
Operating at a 355 nm ultraviolet wavelength, this machine enables cold marking on plastics, glass, PCB boards, cables, and medical components, ensuring clear, permanent markings without material deformation.
Technical Specifications
| Parameter | Value |
|---|---|
| Available Laser Power | 3W / 5W / 7W / 10W |
| Wavelength | 355 nm (UV) |
| Marking Speed | 7000 mm/s to 15000 mm/s |
| Marking Field | 110×110 mm, optional up to 300×300 mm |
| Minimum Line Width | 0.02 mm |
| Minimum Character Height | 1 mm |
| Repeat Accuracy | ±0.01 mm |
| Cooling Method | Air or water-cooled (Based on requirement) |
| Software | EZCAD or compatible software |
| Voltage Input | AC 220V, 50/60 Hz |
Core Features & Highlights
UV wavelength (355 nm) for cold, non-contact marking
Compact and lightweight design for portability
Excellent marking precision on plastics, glass, and PCBs
Suitable for on-site or mobile workstation use
Available in 3W / 5W / 10W configurations
No thermal distortion or material burning
Low power consumption and long laser life
Ideal for electronics, cables, packaging, and medical tools
Optional Accessories
Trolley stand for mobility and adjustable height
Protective enclosure with UV safety window
Rotary axis for cylindrical components
Exhaust system for fume management
Auto-focus module for multi-depth marking
Why Choose This Model?
Portable & Flexible — Move easily between workstations or lines
Cold Marking Precision — Ideal for sensitive plastics and glass
No Consumables or Maintenance — Long-lasting UV source
Clean & Safe — Minimal heat and no residue generation
Perfect for manufacturers needing a compact yet professional UV marking setup
Interested in This Machine?
Get in touch to discuss your application and marking needs.
Our experts can help configure the right UV system for your product type and environment.
