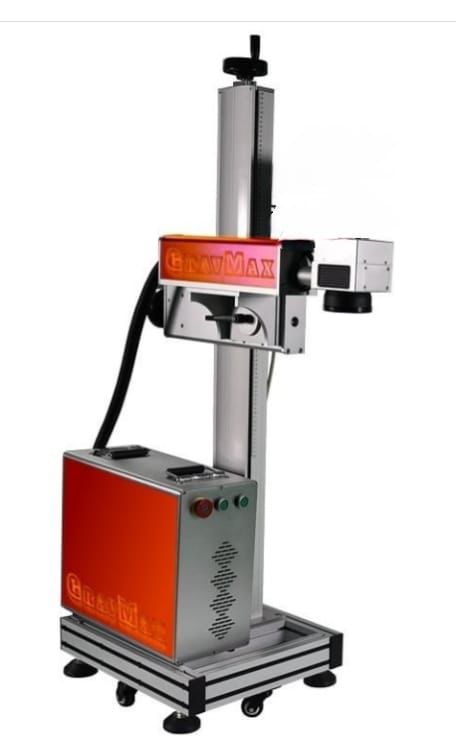

Fly Fiber Laser Marking Machine
Our Fly Fiber Laser Marking Machine is built for high-precision, high-speed, and permanent marking in continuous production environments. Designed to integrate with conveyor belts, packaging lines, or automated assembly systems, it enables non-stop, real-time part marking without human intervention.
Powered by globally trusted laser sources like IPG, Raycus, MAX, or JPT, this system delivers consistent, maintenance-free results — making it ideal for industries focused on batch coding, serializing, or traceability at scale.
Technical Specifications
| Parameter | Value |
|---|---|
| Available Laser Power | 20W / 30W / 50W / 100W |
| Wavelength | 1064 nm ± 5 |
| Marking Speed | Up to 9000 mm/s |
| Marking Field | 110×110 mm (standard), optional lenses up to 300×300 mm |
| Minimum Line Width | 0.01 mm |
| Minimum Character Height | 0.1 mm |
| Repeat Accuracy | ±0.01 mm |
| Triggering | Photoelectric sensor / Encoder |
| Laser Source Options | IPG / JPT / Raycus / MAX |
| Cooling Method | Air-cooled |
| Software | EZCAD (standard) |
| Voltage Input | AC 220V, 50/60 Hz |
Core Features & Highlights

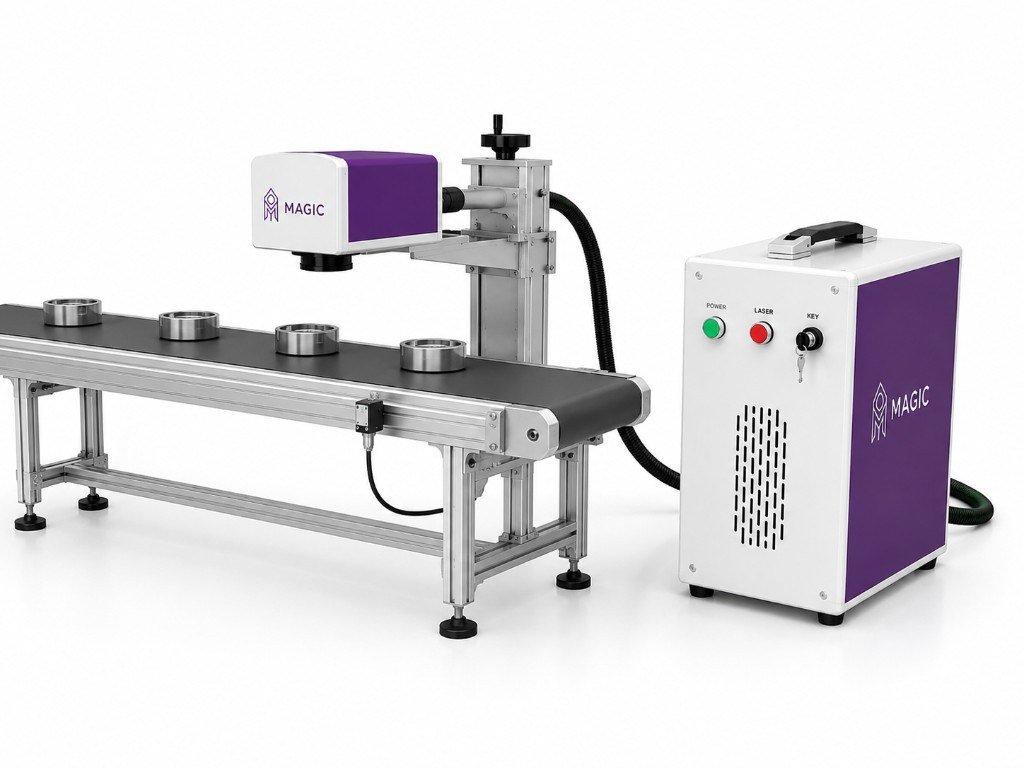

- Inline integration with conveyor or moving production systems
- Real-time marking with no motion stopping
- Laser power options: 20W / 30W / 50W / 100W
- Continuous marking speed: up to 9000 mm/s
- High-resolution output: 0.01 mm line width
- Smart triggering via photoelectric sensor or encoder
- Software supports real-time data changes (e.g., serial, date, shift)
- Designed for 24×7 operation in high-speed environments
Optional Accessories
Mounting stand or gantry with vertical/horizontal adjustability
Photoelectric sensor & encoder kit for line-syncing
Rotating roller or part-feeding systems
Safety shielding for inline operators
External stack light or buzzer integration
Why Choose This Model?
Mark without stopping your production line
Designed for real-time, automated marking
Smart software controls dynamic content marking (serial, time, batch)
Ideal for pharmaceutical, FMCG, electronics, automotive industries
Optimized for speed, durability, and low maintenance
Interested in This Machine?
Let us help you integrate this model into your production workflow — with full support for sensor setup, encoder configuration, and custom mounting.
